Upright Multiphoton Confocal Microscope

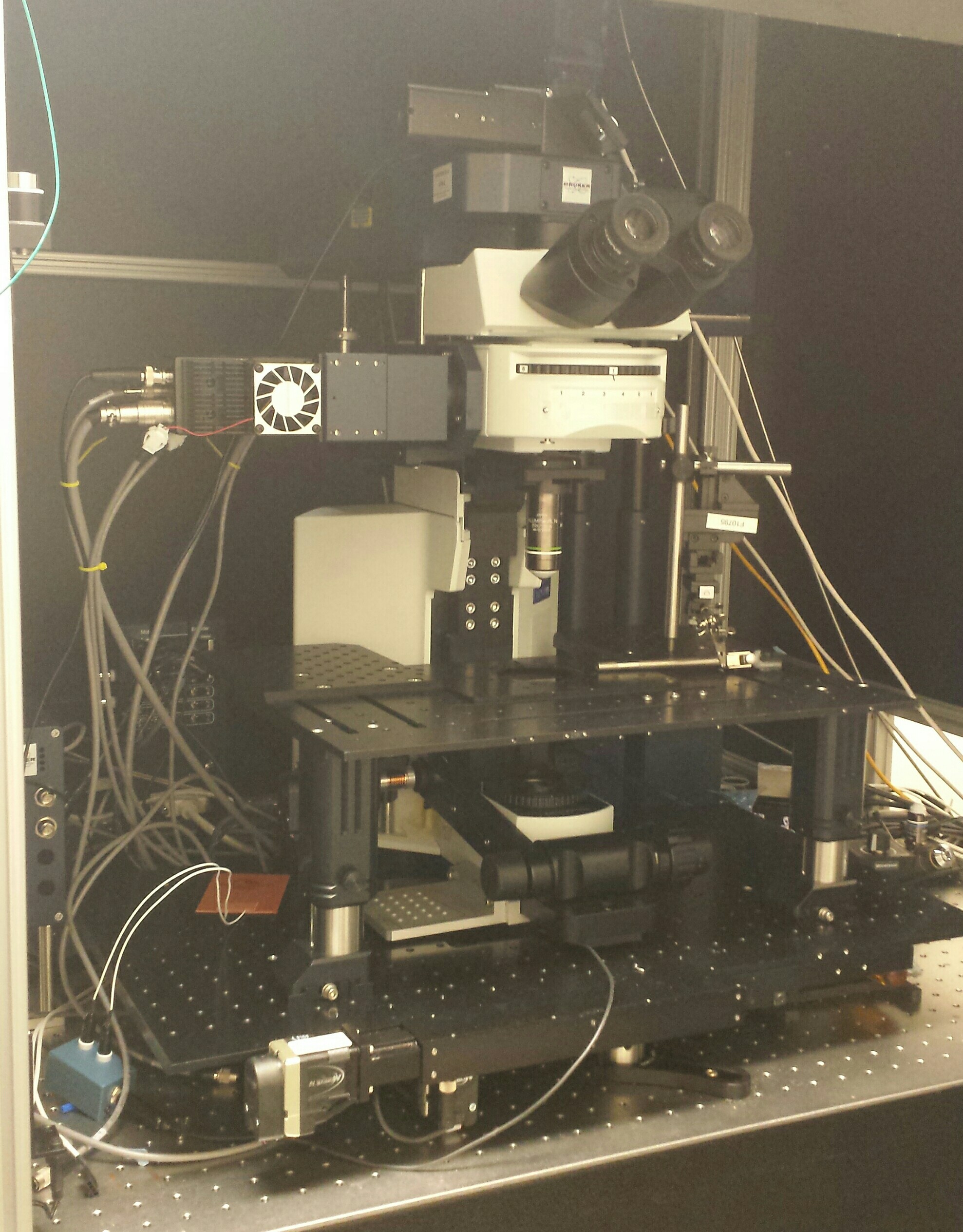

The Bruker Ultima upright multiphoton microscope is capable of simultaneous or sequential imaging, electrophysiology and uncaging/photostimulation on in vivo and in vitro specimens. The microscope is equipped with a Spectra Physics Insight laser X3 laser for multiphoton excitation. The laser has two outputs - one is a tunable from 690 nm -1300 nm and the other output is a fixed 1040 nm. Two visible lasers 473 nm and 561 nm are available for photoactivation.


  •      Olympus PLN10X; Plan Achromat 10x/0.25, WD 10.5 mm
  •      Olympus XLUMPLFLN 20XW; 20x/1.0 objective, WD 2.0 mm
  •      Olympus LUMPLFL40XW/IR-2; M Plan Fluorite 40x/0.8, WD 3.3 mm
  •      Olympus LUMPLFL60XW/IR-2; M Plan Fluorite 60X/1.0, WD 2 mm


  1. Resonant Scanner for high speed imaging.
  2. Full field photoactivation with 470 nm LED.
  3. Bruker substage detectors.
  4. Bruker Prairie View imaging software.


For additional information about this piece of equipment, see the Calendars, Contacts, and Fees pages.

Primary Contacts
Secondary Contacts
Manufacturer Bruker
Equipment Model Ultima
Location B0546
