3D Scanning

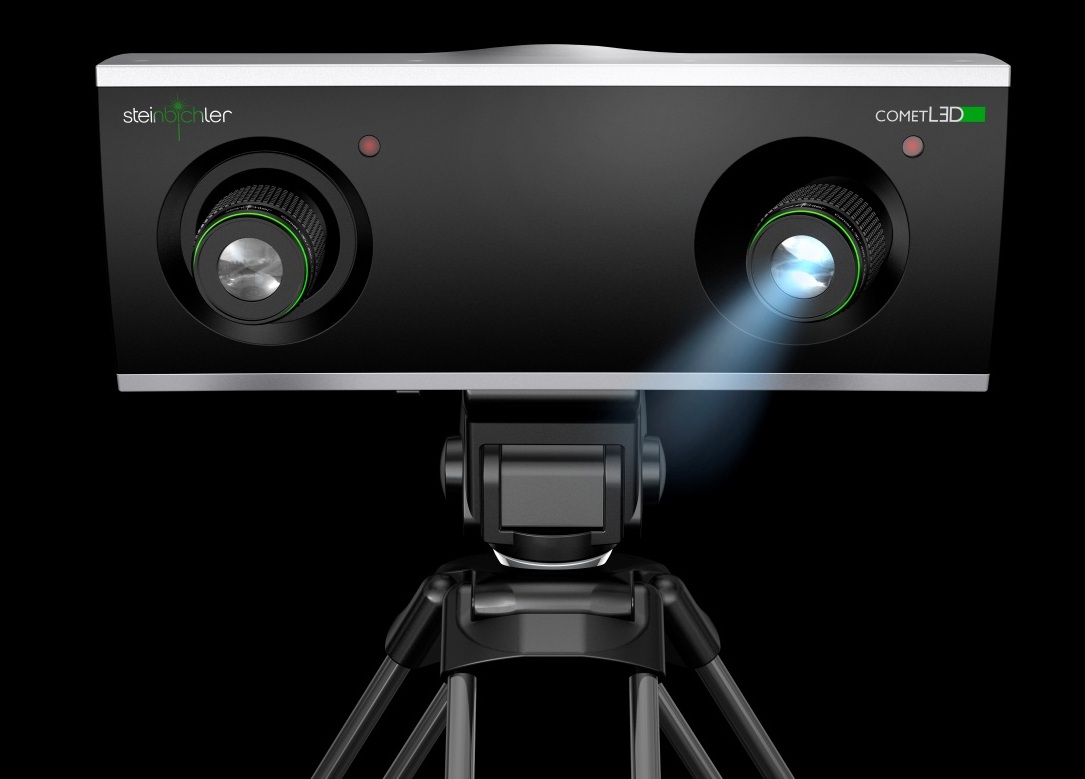

Steinbichler Comet L3D Scanner

Steinbichler Comet L3D

Steinbichler Comet L3D

  • Camera Resolution 1600 x 1200.
  • Fastest Measuring Time in Seconds: lowrez setting 1 second, highrez 5 seconds.
  • Win7 64 PC Mobile Workstation.
  • Tripod sensor positioning stand.
  • Turn and tilt axis automatic object positioning rotation table robot.
Measuring field
Measuring volume in mm³
Point to point distance in µm(s)
Stand off in mm
100mm
100x75x60
60
760
200mm
215x165x140
135
760
400mm
400x300x250
259
760

Application Areas:

  • Quality Control/Inspection
  • Mold and Toolmaking
  • Design
  • Rapid Manufacturing
  • Reverse Engineering
  • Scanning of art/historical objects, archaeology

Resources

For additional information about this piece of equipment, see the Calendars, Contacts, and Fees pages.
